Sometimes technology genuinely makes life better. That’s why I love building things.

1. Why I Built This

😩 The problem:

• My daughter was struggling with French vocabulary
• Shared Anki decks didn’t match her textbook or her level
• Most decks are dull — text-only, no images, no audio, no analysis
• Making good flashcards by hand? 20–30 minutes per word. For a 40-word unit, that’s a part-time job

🛠️ The solution:

• One weekend, 126 commits, over 800 personalized cards
• 🎨 Cartoon illustrations, 🔊 pronunciation audio, 🧬 color-coded etymology, 💡 kid-friendly mnemonics
• She opened Anki on her iPad and grinned:

“Papa, this one has a funny picture.”

The gap is not in the study app — Anki is battle-tested. The gap is in personalized content generation.

2. The Approach: Feed the Wheel, Don’t Replace It

ankids doesn’t compete with Anki. It feeds it.

Drop in any input, get back a ready-to-import .apkg file. Anki handles everything after that.

Supported inputs:

• 📝 Word lists
• 📊 Excel files
• 📄 PDF textbooks
• 📸 iPhone photos of homework sheets

Five-step AI pipeline, three core capabilities:

• 👁️ Vision models — OCR a photo of any textbook page, extract words, translations, and example sentences in one pass
• 🧠 Language models — Generate etymology, morpheme breakdowns, IPA pronunciation, cognates, and kid-friendly mnemonics at scale
• 🎨 Image & audio models — Create a cartoon illustration and pronunciation clip for every word, so a child hears and sees before they read

Output:

• 📦 A single .apkg file, ready to import into Anki
• 🔄 Sync, scheduling, mobile, progress tracking — all handled by Anki

3. Before and After

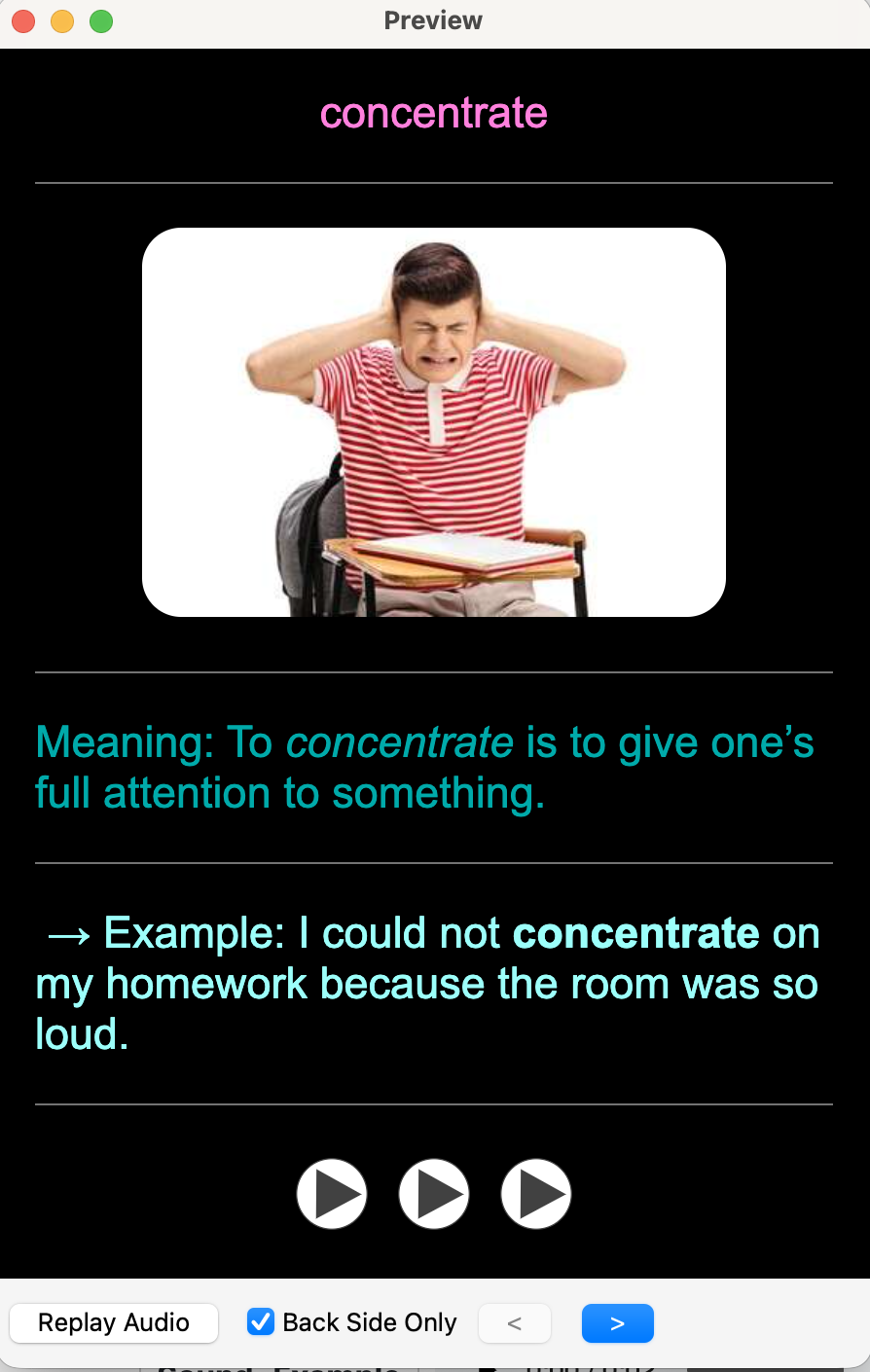

😐 Shared deck — what most people use:

• Text-only, no images, no audio — functional but forgettable

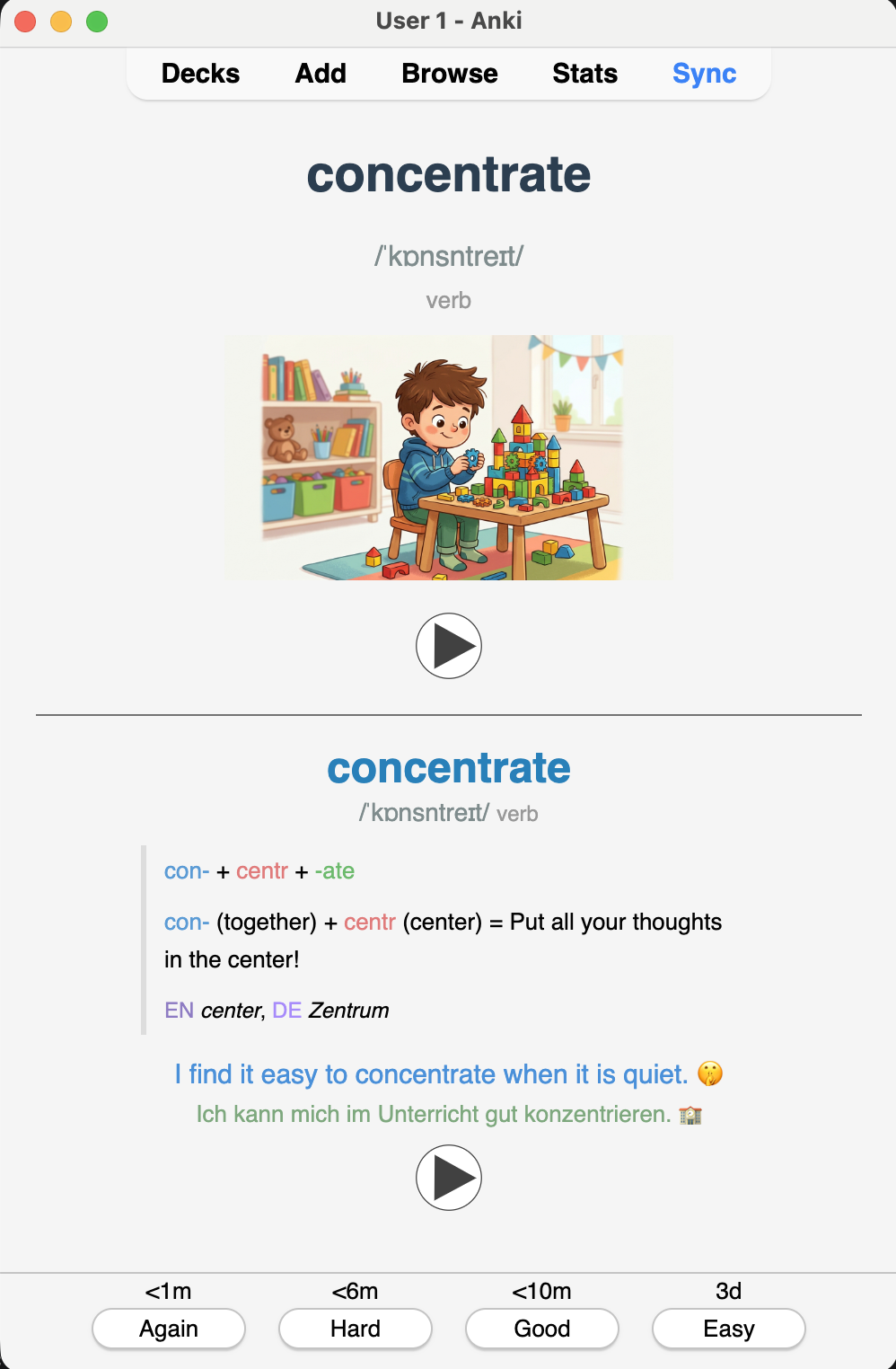

🤩 ankids — what we generate:

• 🖼️ AI cartoon illustration
• 🗣️ IPA pronunciation TTS audio
• 🎨 Color-coded morpheme breakdown
• 🧬 Origin chain back to Proto-Indo-European
• 🌍 Cognates across four languages
• 💡 Memory hook bilingual example sentence

A card that shows why a word looks the way it does is far easier to retain than one that just restates the definition.

4. How It Works

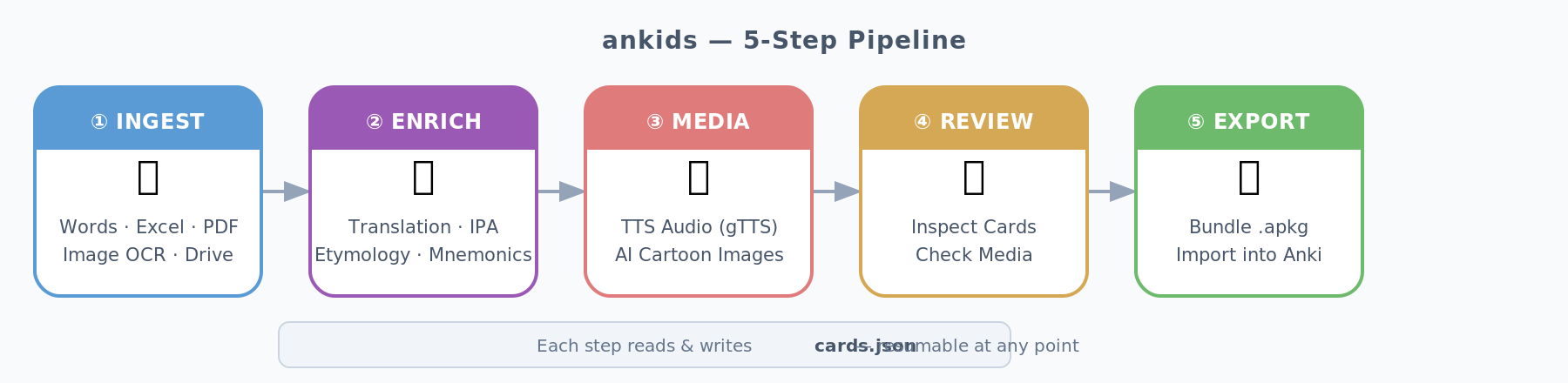

4.1 The 5-Step Pipeline

• 📄 Each step reads/writes a shared cards.json
• 🔁 Every step is independently restartable — hit a rate limit at card 847? Re-run and it resumes

4.2 Input Sources

• 📥 Six source types: --words (CSV), Excel/CSV, PDFs, single images, image folders, Google Drive URLs
• 📱 HEIC support (iPhone photos) built in — HEIC → Gemini Vision OCR → structured JSON via pillow-heif

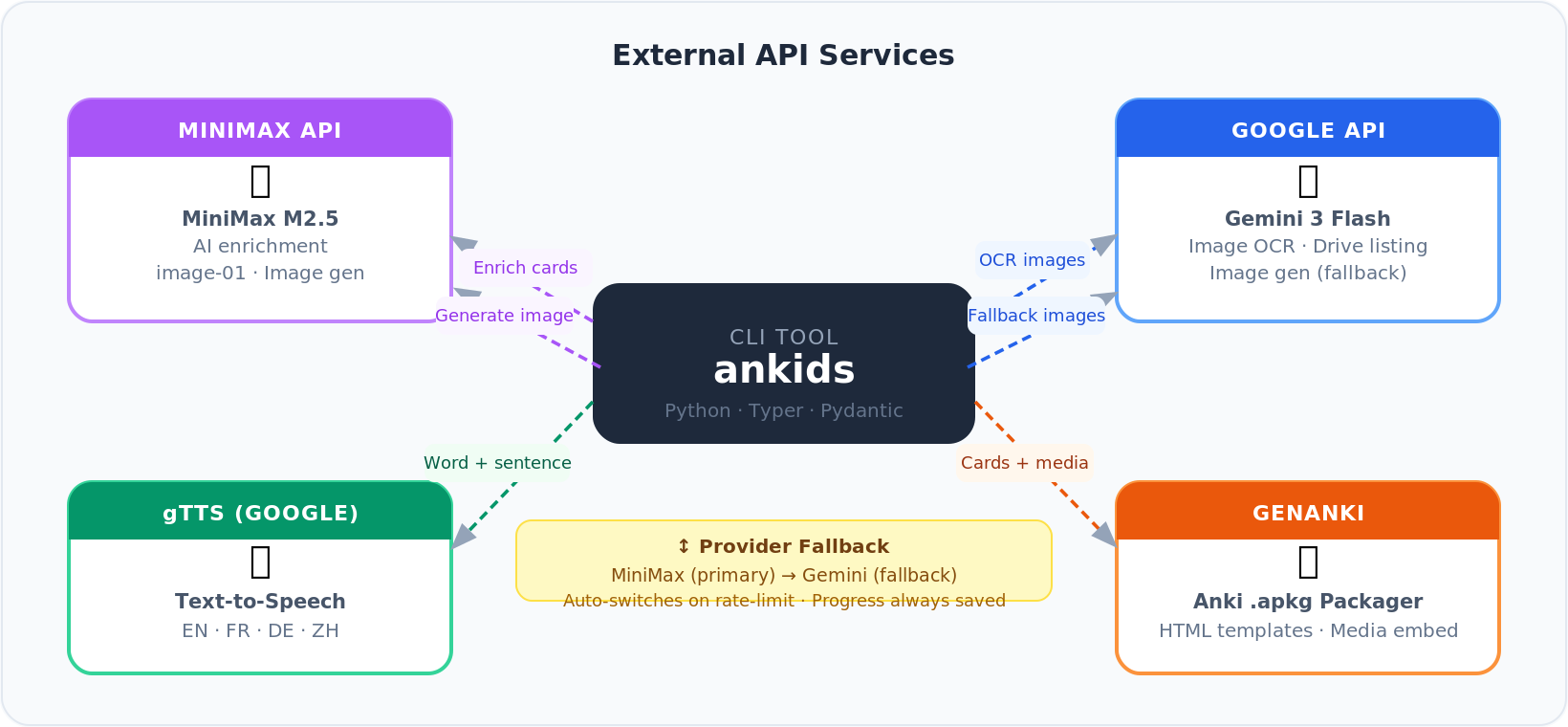

4.3 External Services

• 🤖 MiniMax — enrichment LLM primary image generator
• 🔍 Google Gemini — OCR image generation fallback
• 🔄 Auto-fallback on rate limits, progress saved between runs

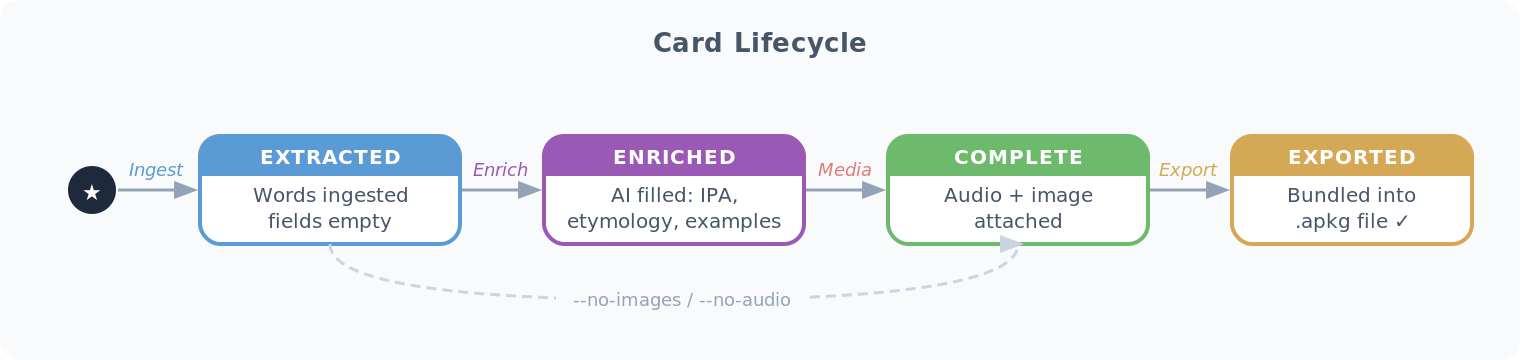

4.4 Card Lifecycle

4.5 Workspace Layout

workspace/
└── a1b2c3d4/
    ├── cards.json               ← single source of truth
    ├── media/
    │   ├── {uuid}_audio.mp3     ← word TTS
    │   ├── {uuid}_example_audio.mp3
    │   └── {uuid}_image.png     ← AI cartoon
    └── MyDeck.apkg              ← ready to import

• 🔒 UUID-scoped isolation — multiple decks run in parallel, no collisions
• 💾 Workspace persists between sessions — critical for large batches

5. What Makes a Card Memorable

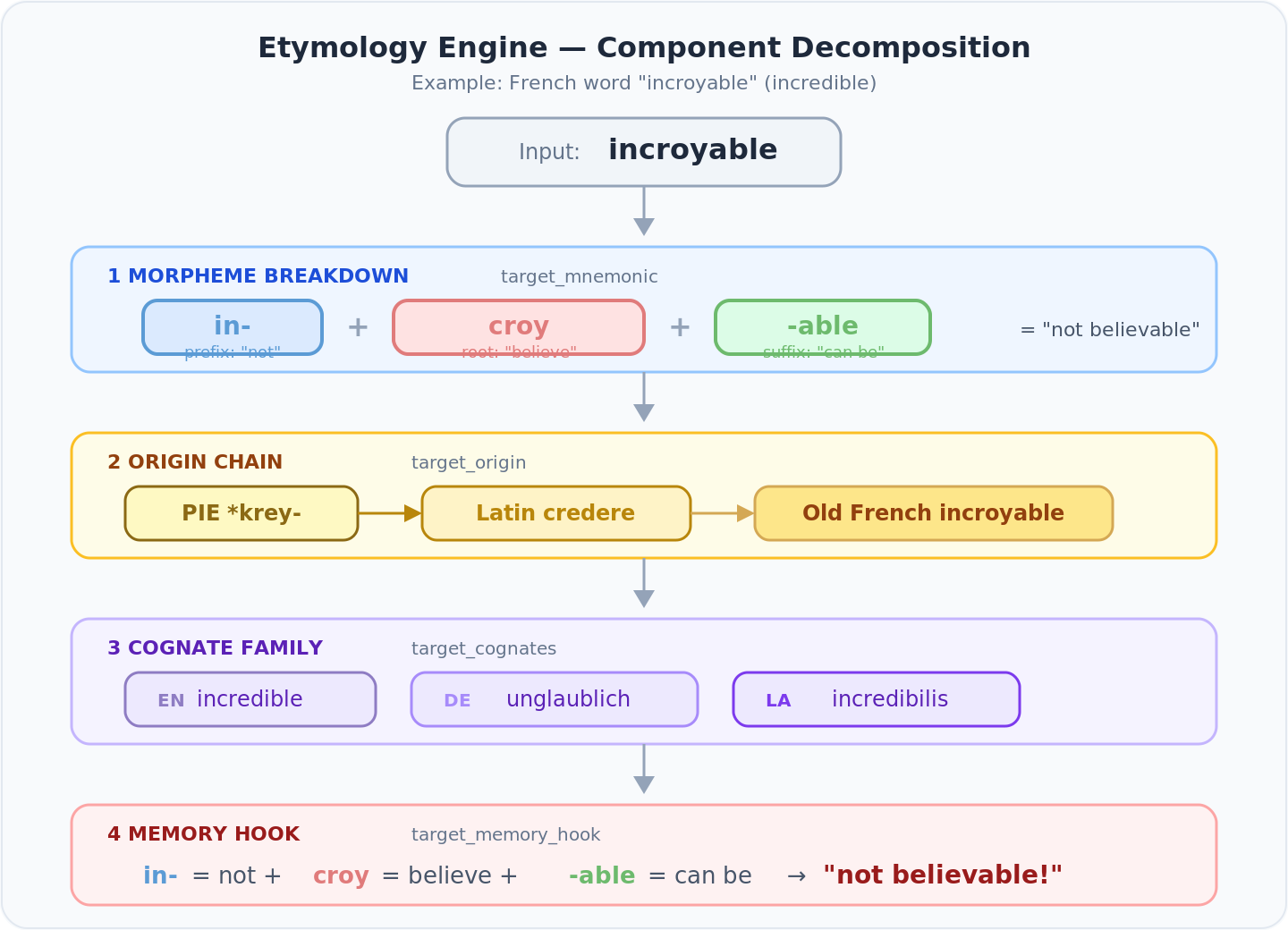

5.1 The Etymology Engine

• 🧠 Most Western European words share Latin or Greek roots
• 🔍 A child who knows in- = “not” and croy = “believe” can decode incroyable without memorizing it
• 💡 That’s linguistic intuition, not rote memorization

Four fields per card, each color-coded:

Example — incroyable:

Mnemonic:    <span color="#5b9bd5">in-</span>   <span color="#e07b7b">croy</span>   <span color="#6dba6d">-able</span>
Origin:      <span color="#8B6914">PIE *krey-</span> →
             <span color="#B8860B">Latin credere</span> →
             <span color="#D4A854">Old French incroyable</span>
Cognates:    <span color="#8e7cc3">EN</span> incredible,
             <span color="#a78bfa">DE</span> unglaublich,
             <span color="#7c3aed">LA</span> incredibilis
Memory hook: <span color="#5b9bd5">in-</span> = not
             <span color="#e07b7b">croy</span> = believe
             <span color="#6dba6d">-able</span> = can be → "not believable!"

• 🎯 HTML renders directly inside Anki’s card template
• ⏭️ Atomic words that don’t benefit from breakdown skip the block
• 🎨 Gender coloring: masculine = blue, feminine = coral, neuter = grey — consistent everywhere

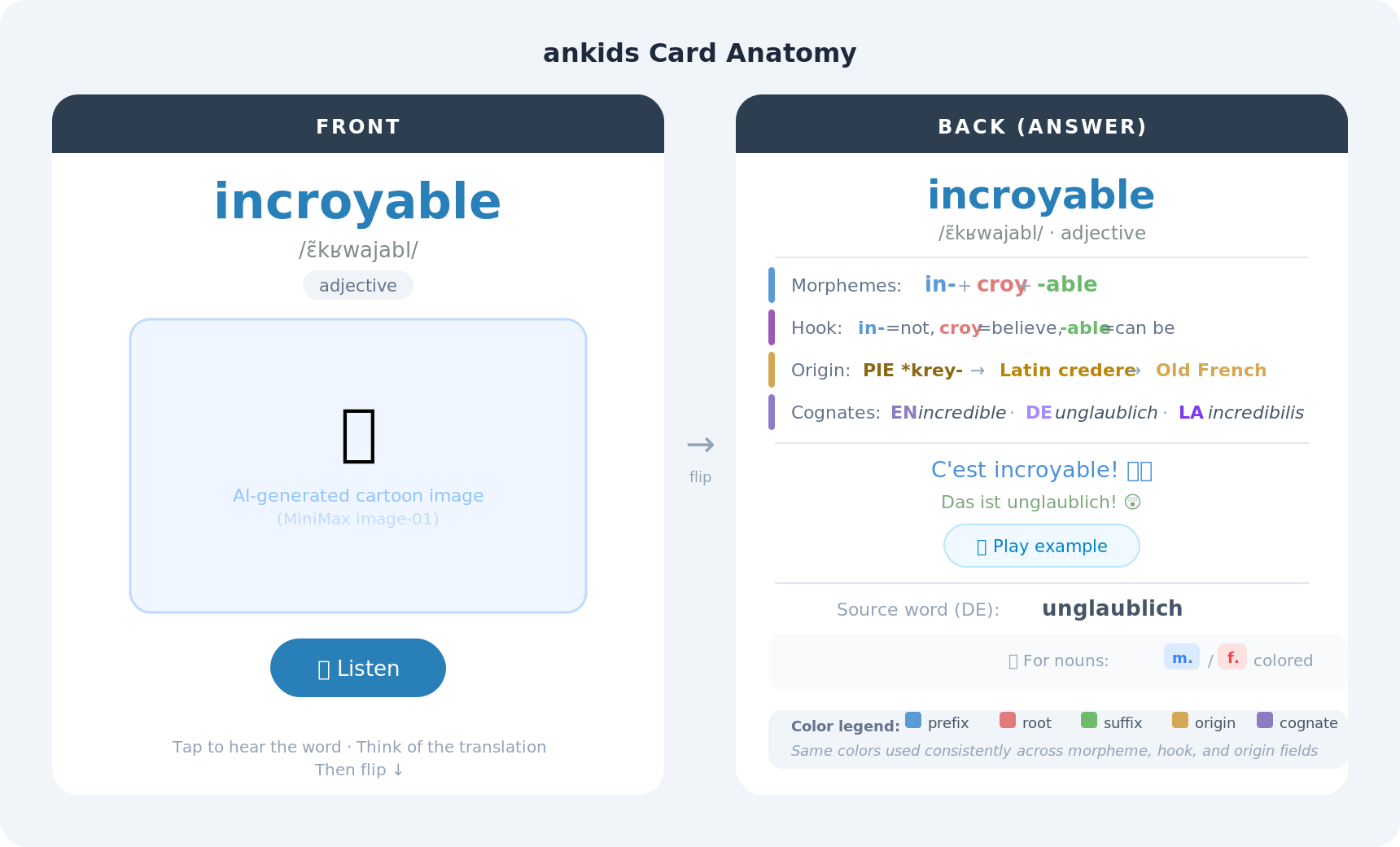

5.2 The Card Template

• Front: target word, IPA, part-of-speech, AI cartoon, audio button
• Back: etymology stack, example sentences with audio, source word, gender badge
• ⌨️ “Type-in” variant — shows source word, prompts learner to type the answer

5.3 The Data Model

The Card Pydantic model is the contract across every pipeline stage:

class Card(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    unit: str | None = None          # e.g. "Unité 3"
    status: str = STATUS_EXTRACTED   # extracted → enriched → complete
    source_word: str
    source_language: str = "de"
    source_gender: str | None = None
    target_word: str | None = None
    target_language: str
    target_pronunciation: str | None = None   # IPA or Pinyin
    target_part_of_speech: str | None = None
    target_example_sentence: str | None = None
    target_mnemonic: str | None = None
    target_origin: str | None = None
    target_cognates: str | None = None
    target_memory_hook: str | None = None
    typing: bool = False

• 🔑 Merge key: (source_word, target_language)
• 🛡️ Re-ingesting never overwrites existing enrichment or media — only adds new words

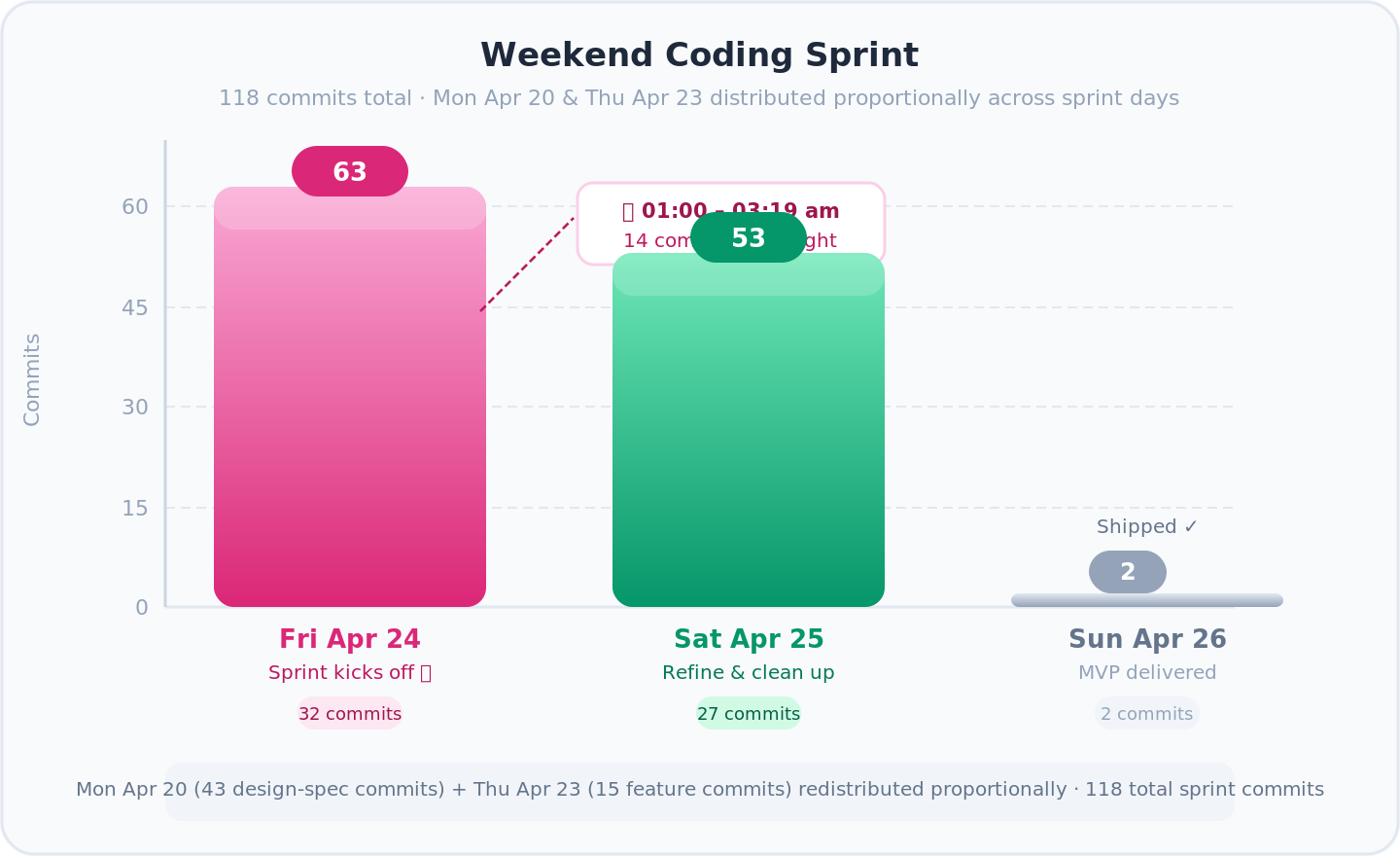

6. Building It: 126 Commits Over a Weekend

• 📐 Monday — architecture: schema drafts, prompt specs, system design. No runtime code yet
• 🚀 Thursday 21:30 — first feature live (image OCR via Gemini)
• 🌙 Friday 00:30–03:19 — 14 commits in flow state: shared constants, API key validation, error handling
• 🔧 Saturday — refinement: docs, workspace isolation, Gemini enrichment, incremental saves
• ✅ Sunday morning — MVP in the hands of the first user

📊 Stats: 126 commits, heaviest work Thursday night → Saturday evening. Longest session: 00:30 to 03:19 while the house slept.

🤖 Working with 10 concurrent AI agents shifts the bottleneck. Agents produce code in seconds. The constraint becomes decisions — which design to accept, which edge case to prioritize, which abstraction to commit to. A different kind of exhaustion. It doesn’t live in your hands. It lives behind your eyes.

🧠 Planning with AI before coding — I used superpowers brainstorming heavily for architecture and design decisions before writing any code. Its new visual companion feature is insane — generates UI mockups and diagrams right in the terminal, so you can see what you’re building before you build it.

7. What I Learned the Hard Way

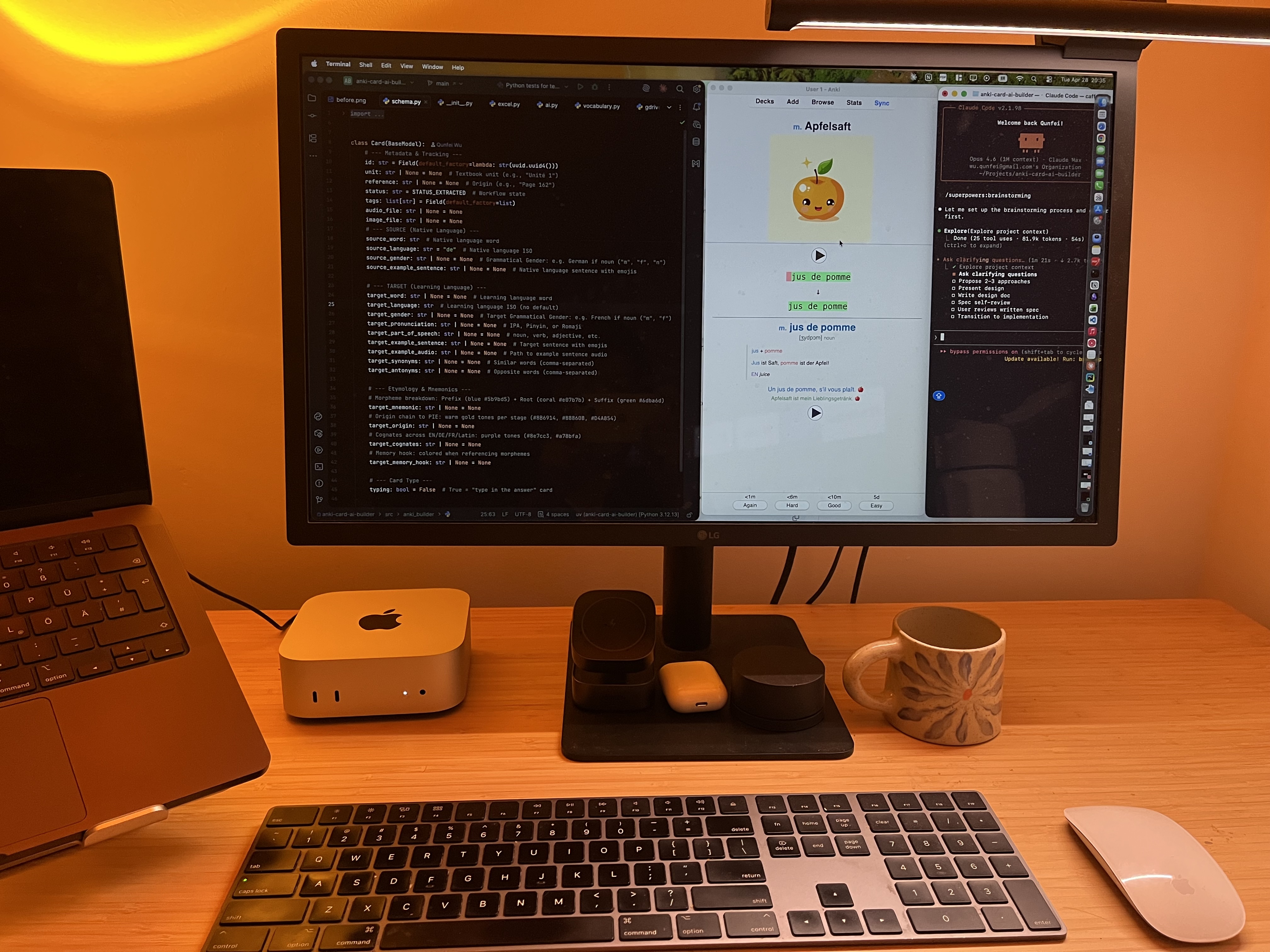

7.1 Your Laptop Is Not a GPU Server

• 💻 Mac Mini M4 (16 GB) — ran 10 parallel AI coding agents fine
• 🚫 Stable Diffusion XL, Flux, Gemma 4 — all need >16 GB VRAM
• 🐢 On shared unified memory: 1 image every 3–4 minutes. For 1,000 words = days
• ☁️ Lesson: use cloud APIs. This is a hardware constraint, not a software one

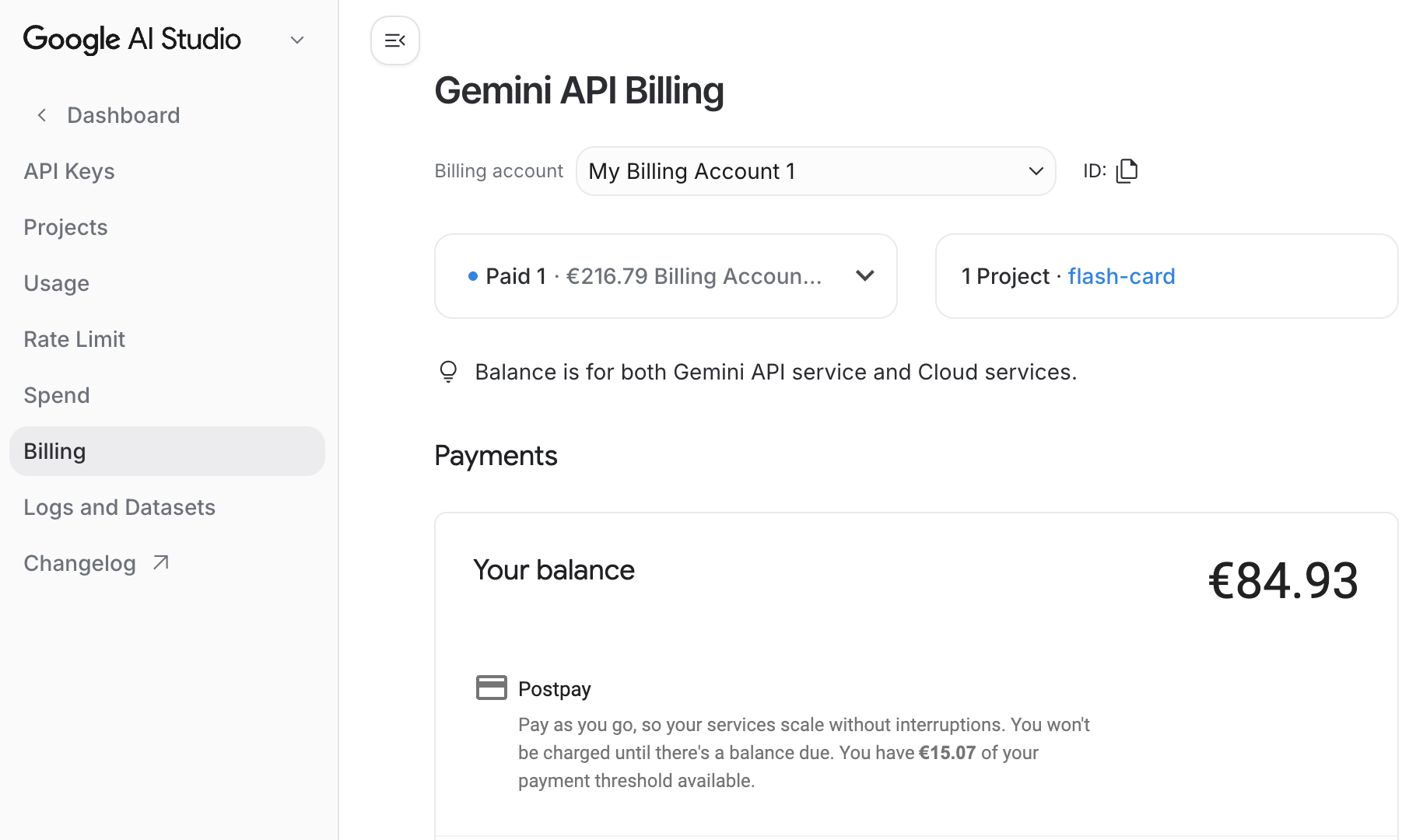

7.2 The $84 Bill

• 💸 Gemini image generation aggressive async concurrency = $84 in one Hour
• 😅 The pipeline worked exactly as designed — both impressive and alarming
• 💰 Fix: switched primary provider to MiniMax image-01 — less quality, fraction of the cost

PROVIDERS = {
    "minimax": _generate_minimax,
    "gemini":  _generate_gemini,
}

• 🛑 Rate-limit (429) halts the batch gracefully and saves progress — nothing lost

7.3 AI Takes Words Literally

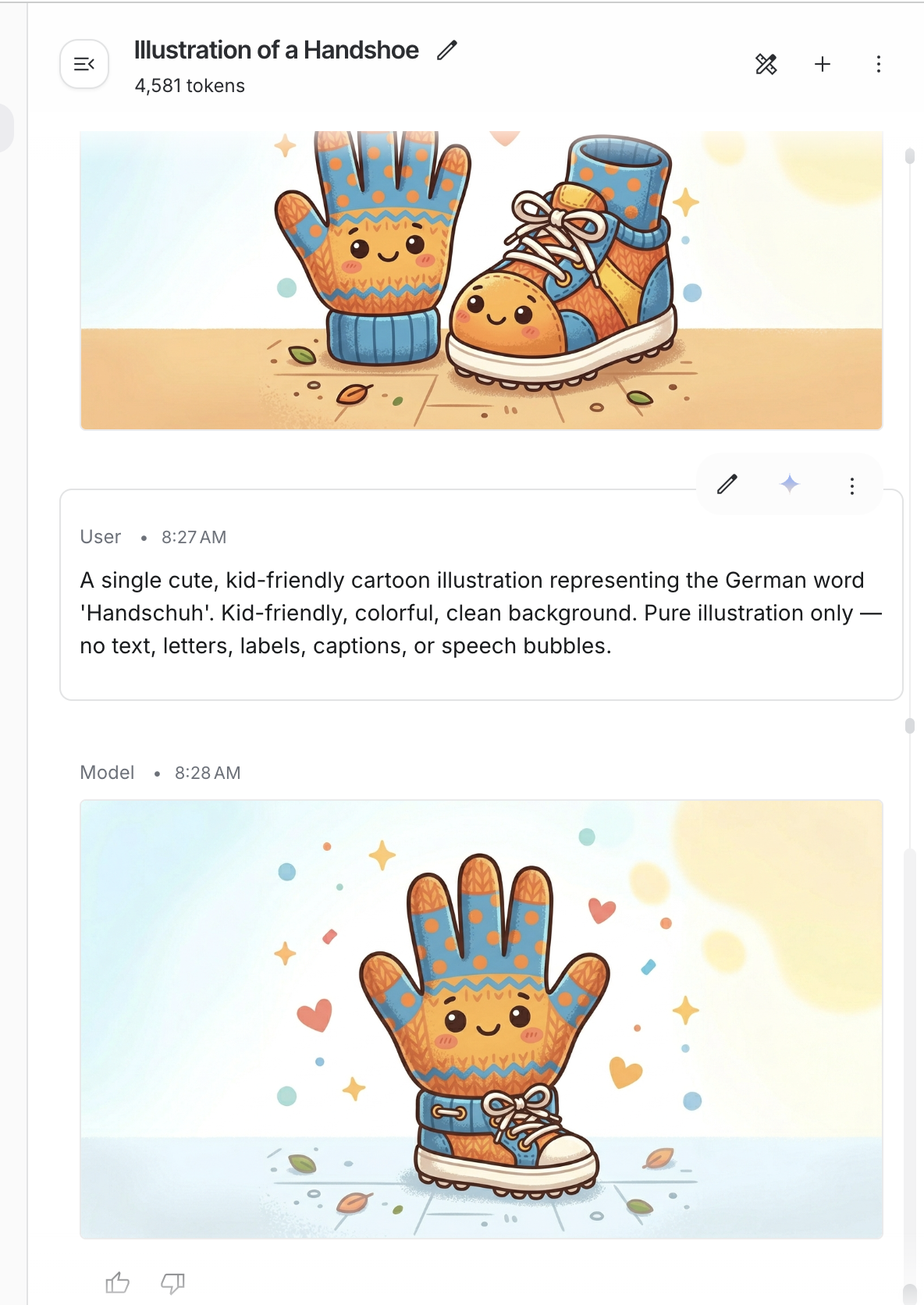

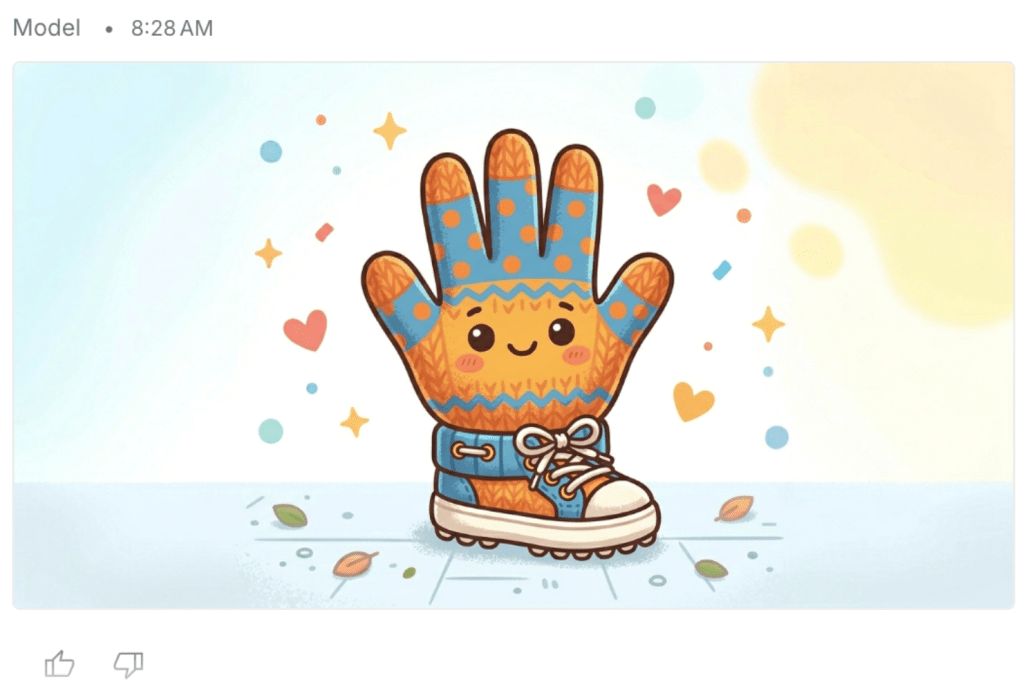

• 😂 Handschuhe = “hand shoes” (gloves). The model drew a hand and a shoe. Smiling.
• 🔧 Fix: pass the full language name tell the model to illustrate the concept, not decode the word

def _build_image_prompt(word: str, target_language: str) -> str:
    lang = _lang_full_name(target_language)  # "de" → "German"
    return (
        f"A single cute, kid-friendly cartoon illustration representing "
        f"the {lang} word '{word}'. "
        f"Pure illustration only — no text, letters, labels, or speech bubbles."
    )

• ✅ “German” instead of “de” dramatically reduced literal interpretations
• ✅ “No text” constraint stopped the model from overlaying words on images

7.4 Deleted Lines Cost Money Too

• 🗑️ 9,760 deleted lines = the cost of moving fast with AI agents
• 🔄 Agents generate code without checking if a module already exists — you end up unifying duplicates

Three biggest cleanups:

• "Clean the docs" — 3,505 lines deleted, 143 added
• "Create MVP in first day" — 3,224 lines deleted, 24 added
• "refactor: eliminate duplication" — 95 deleted, 230 added

💡 Lesson: run code review before adding features, not after. “Does this already exist?” saves hours.

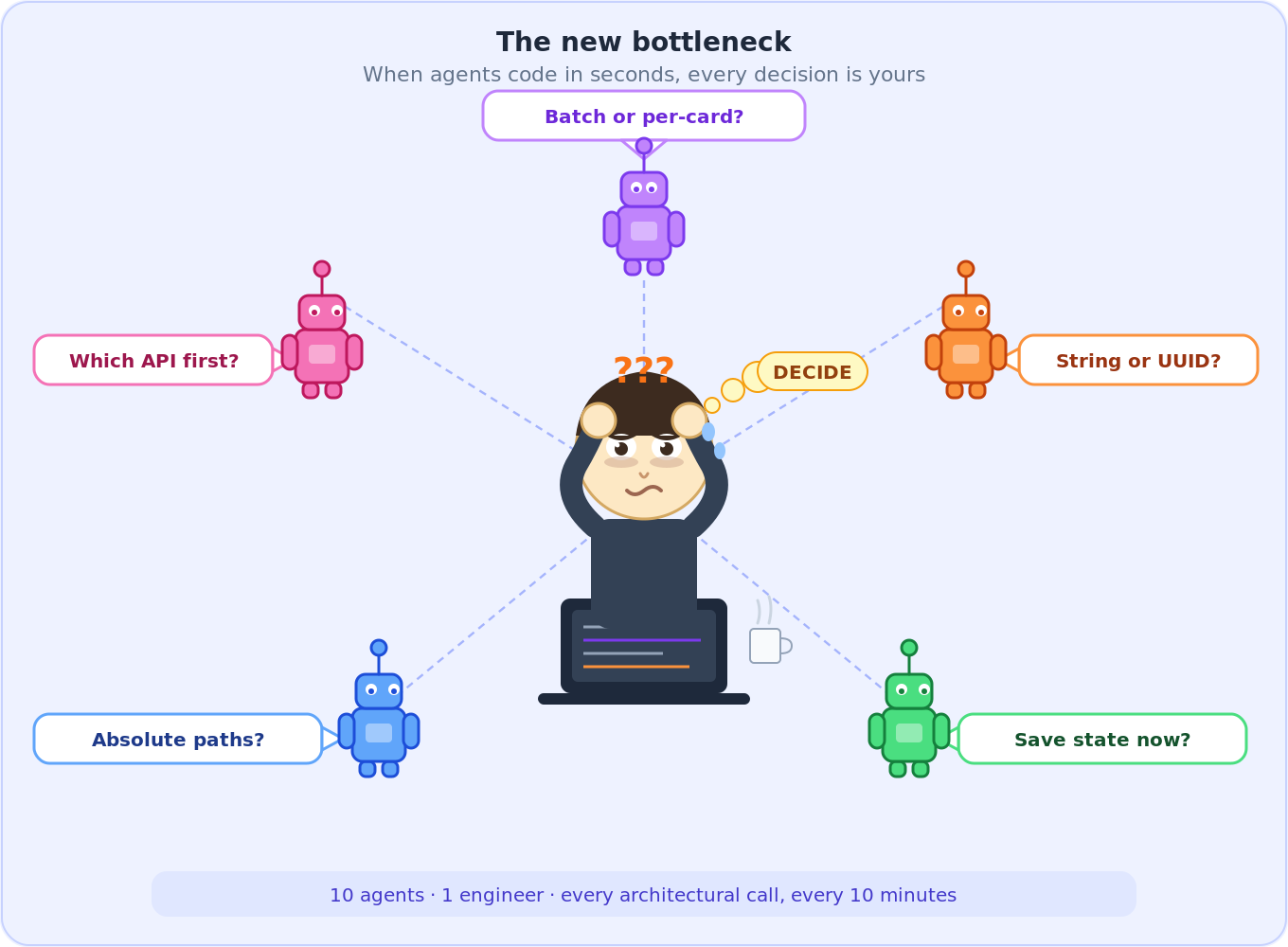

7.5 The New Bottleneck Is You

• ⏱️ Every 10 minutes brings a design question that used to take a day of thinking
• 🧠 Batch or per-card? Absolute or relative paths? Merge by string or UUID?
• 😴 Decisions compound — bad call at midnight = refactoring at 2am
• 🏁 Finished the MVP Sunday morning, slept most of the afternoon

8. Try It

git clone https://github.com/wuqunfei/anki-card-ai-builder
# Install (Python 3.12 )
uv sync
cp .env.example .env

Minimal .env — grab your API keys first:

• 🔑 Google API Key — get one at Google AI Studio
• 🔑 MiniMax API Key — sign up at MiniMax Platform

MINIMAX_API_KEY=your_minimax_key
GOOGLE_API_KEY=your_google_key
LEARNER_PROFILE="ages 9-12, kid-friendly with emojis"

8.1 One command

# From a word list
ankids run --words "chat,maison,incroyable,bonjour" --lang-target fr --lang-source de
# From iPhone photos of textbook pages (HEIC supported)
ankids run --input ./input/french/ --lang-target fr --lang-source de --deck "Unité 3"
# From a PDF textbook
ankids run --input textbook.pdf --lang-target fr --lang-source de
# Incremental — add words to an existing workspace
ankids run --words "école,professeur" --lang-target fr --output workspace/a1b2c3d4

8.2 Step by step

ankids ingest --input ./input/french/ --lang-target fr --lang-source de
ankids enrich --output workspace/a1b2c3d4
ankids media  --output workspace/a1b2c3d4
ankids review --output workspace/a1b2c3d4
ankids export --output workspace/a1b2c3d4 --deck "French Unit 3"

8.3 Cost controls

ankids run --words "chat,chien" --lang-target fr --no-images   # text only
ankids run --words "chat,chien" --lang-target fr --no-audio    # skip TTS
ankids run --words "chat,chien" --lang-target fr --typing      # type-in cards
IMAGE_PROVIDER=minimax MEDIA_CONCURRENCY=2
ankids media --output workspace/a1b2c3d4

8.4 CLI reference

9. What Comes Next

The MVP works. One real user loves it. Here’s where everything stands — what’s tested, what’s not, and what’s still on the roadmap.

🔮 Planned Features — Roadmap

10. Stack

Open source. Pull requests welcome — especially from parents who know the feeling.

github address: https://github.com/wuqunfei/anki-card-ai-builder
